Setting Up DMIx SamplR

	Setting Up DMIx SamplR
1	Open the box carefully
2	Remove the shipping protection, including the accessory box.

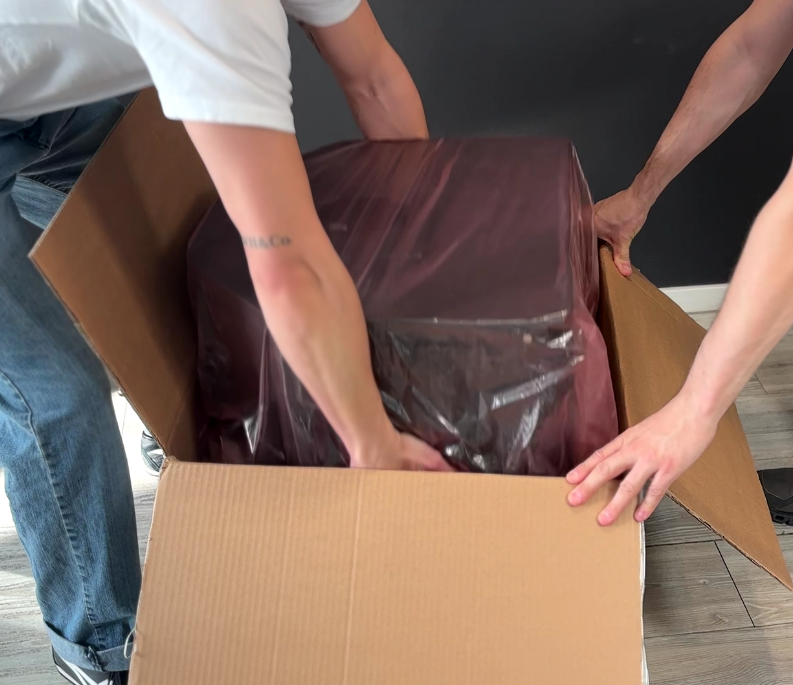

3	Carefully remove the SamplR, including the protective film, from the box. It is recommended that two people do this.

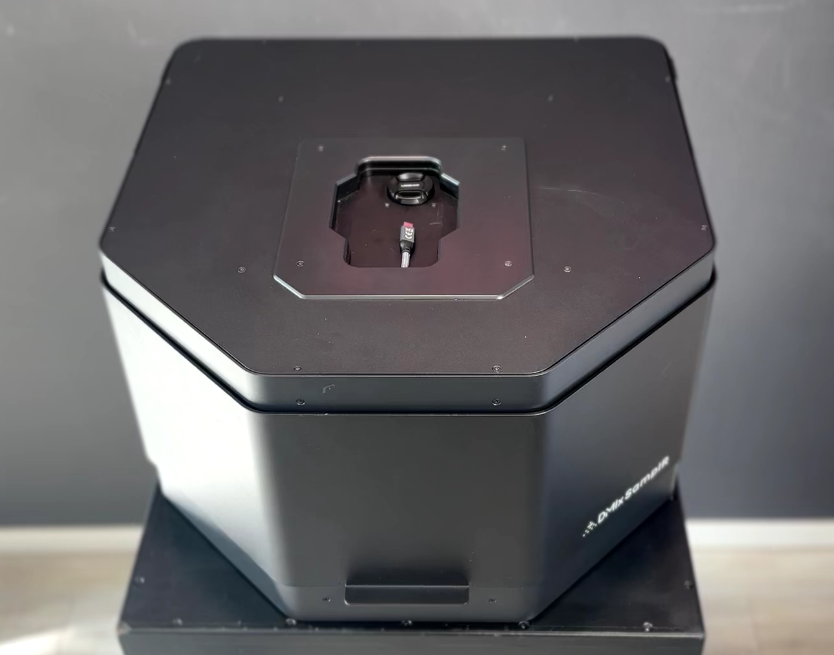

4	Remove the loose protective film and place the SamplR on a clean, flat, and stable surface in a well-lit and dust-free workspace. Ensure the scanner is positioned in an area free from high humidity, dust or extreme temperatures.

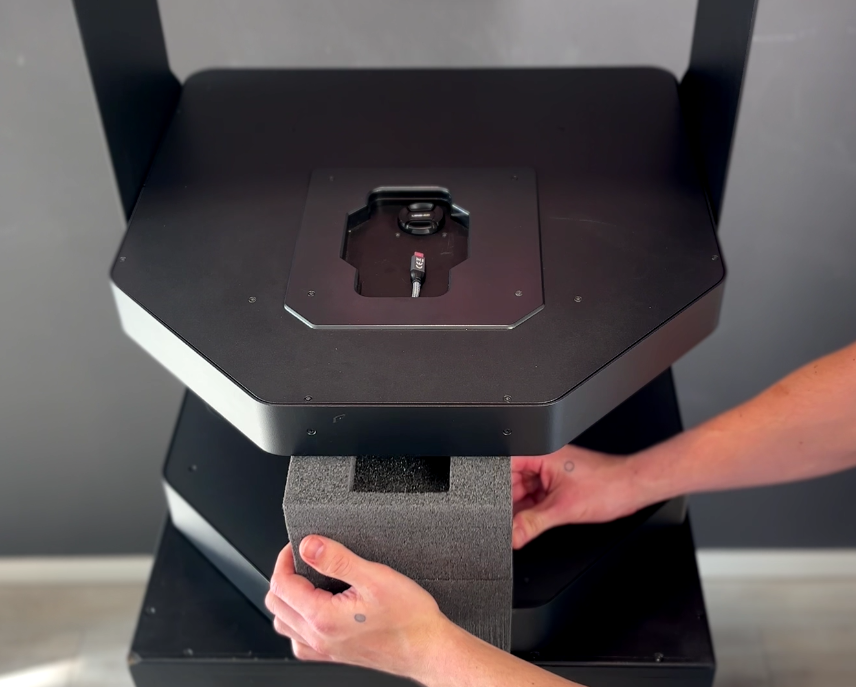

5	Open the scanner visior and remove the shipping restraints.
6	Open the small box included in the shipping packaging, which has already been removed. It contains the accessories needed for further setup.

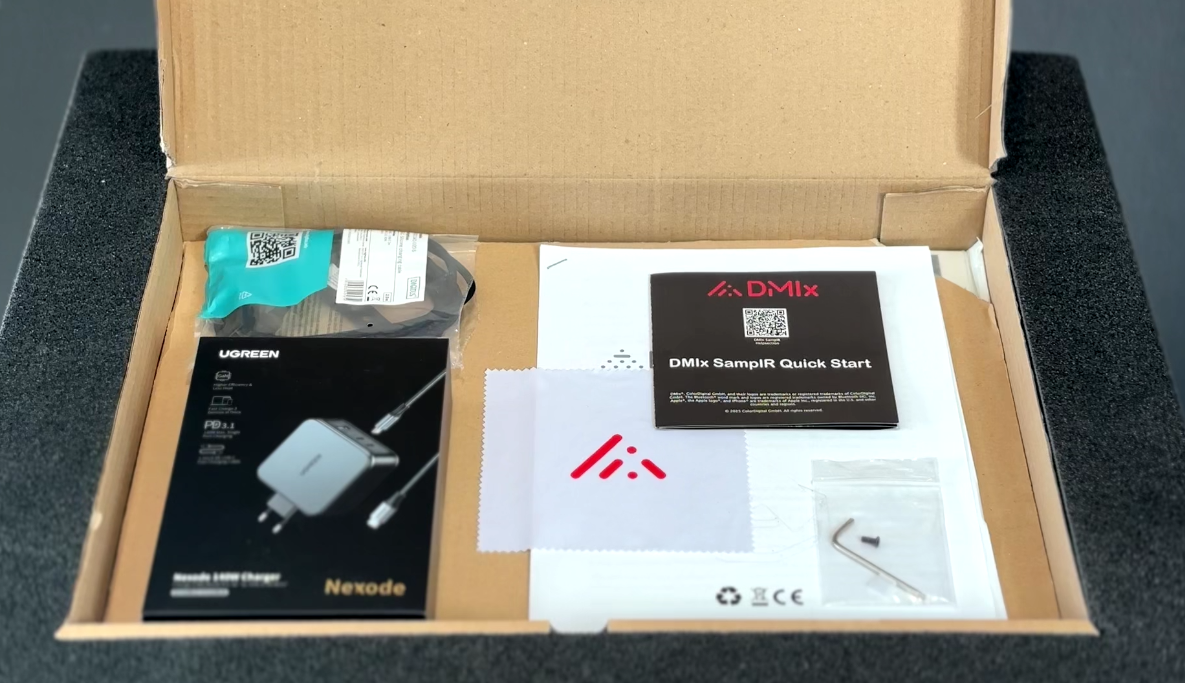

7	Check the contents of the accessory box. It must contain: UGREEN Nexode 140W Dual USB-C power adapter incl. USB-C to USB-C cable DIGITUS USB-C to USB-C cable Microfiber lens cleaning cloth White calibration target Black calibration target Quick Start manual Product Insert document Allen wrench and replacement screw

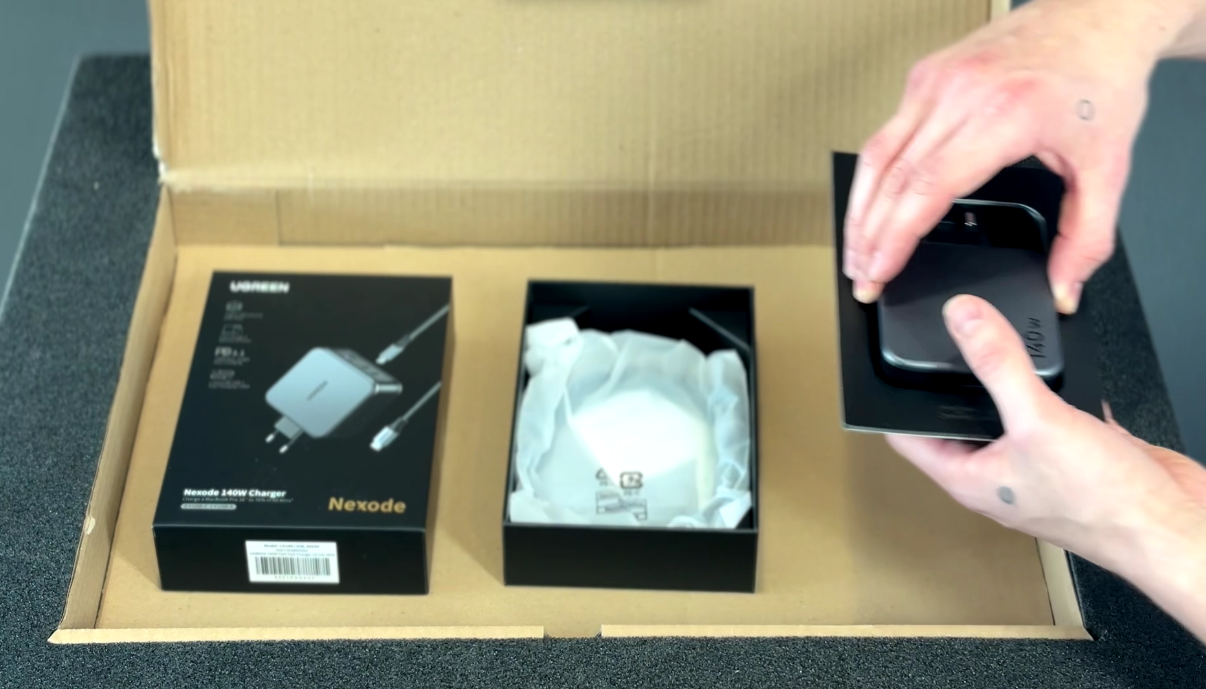

8	Unbox the UGREEN Nexode 140W Charger. Inside you will find the 140W USB Charger and underneath a USB-C to USB-C cable.

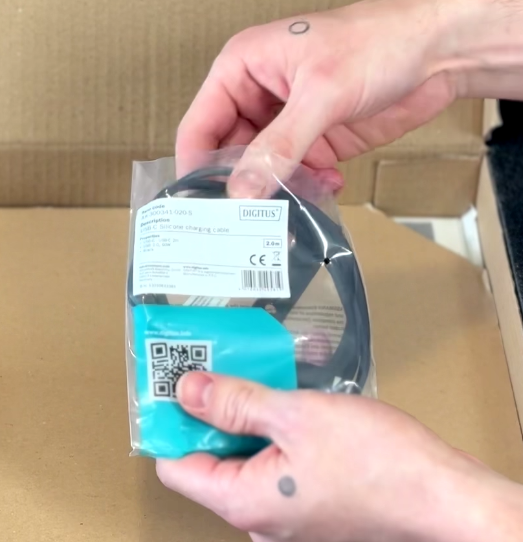

9	Unpack the DIGITUS USB-C to USB-C cable.

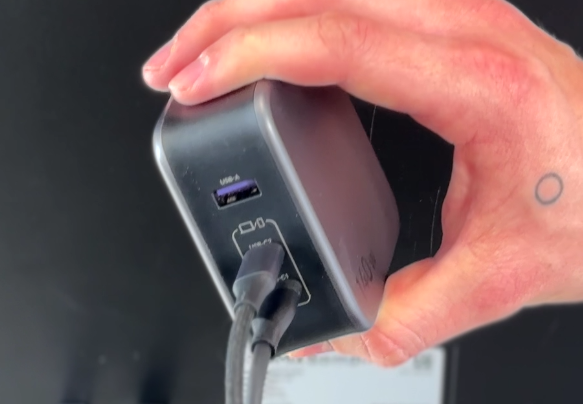

10	Plug the DIGITUS USB-C to USB-C and the UGREEN USB-C to USB-C cable into the UGREEN Nexode 140W power adapter.

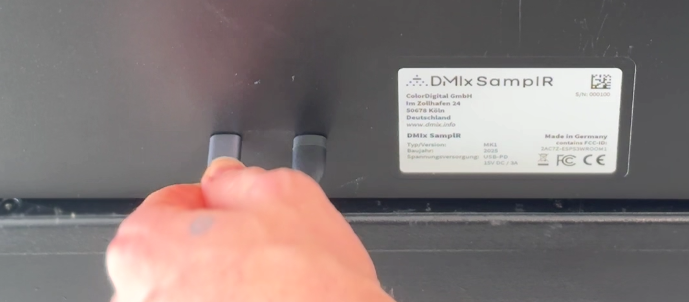

11	Connect both USB-C to USB-C cables to the designated USB-C ports on the backside of the SamplR unit.

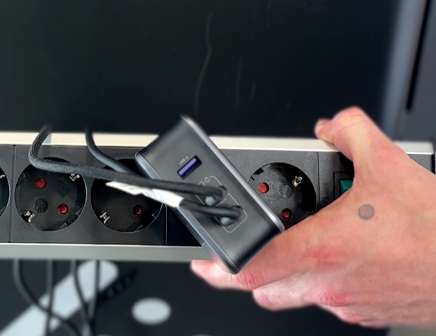

12	Plug the UGREEN Nexode 140W Charger into a 230V power socket.
13	Please proceed with Connecting DMIx SamplR with Your iPhone

Make sure to connect both USB-C cables to the SamplR and the charger. This ensures that the DMIx SamplR is provided with power and the iPhone is chareged at the same time.

Note that the SamplR unit does not have an indicator light. Power connection readiness will be verified through the iPhone once connected.
