SamplR App Interface

This page provides a concise overview of the DMIx SamplR app interface. It shows how to navigate the main screens and access the key functions needed to operate your DMIx SamplR device.

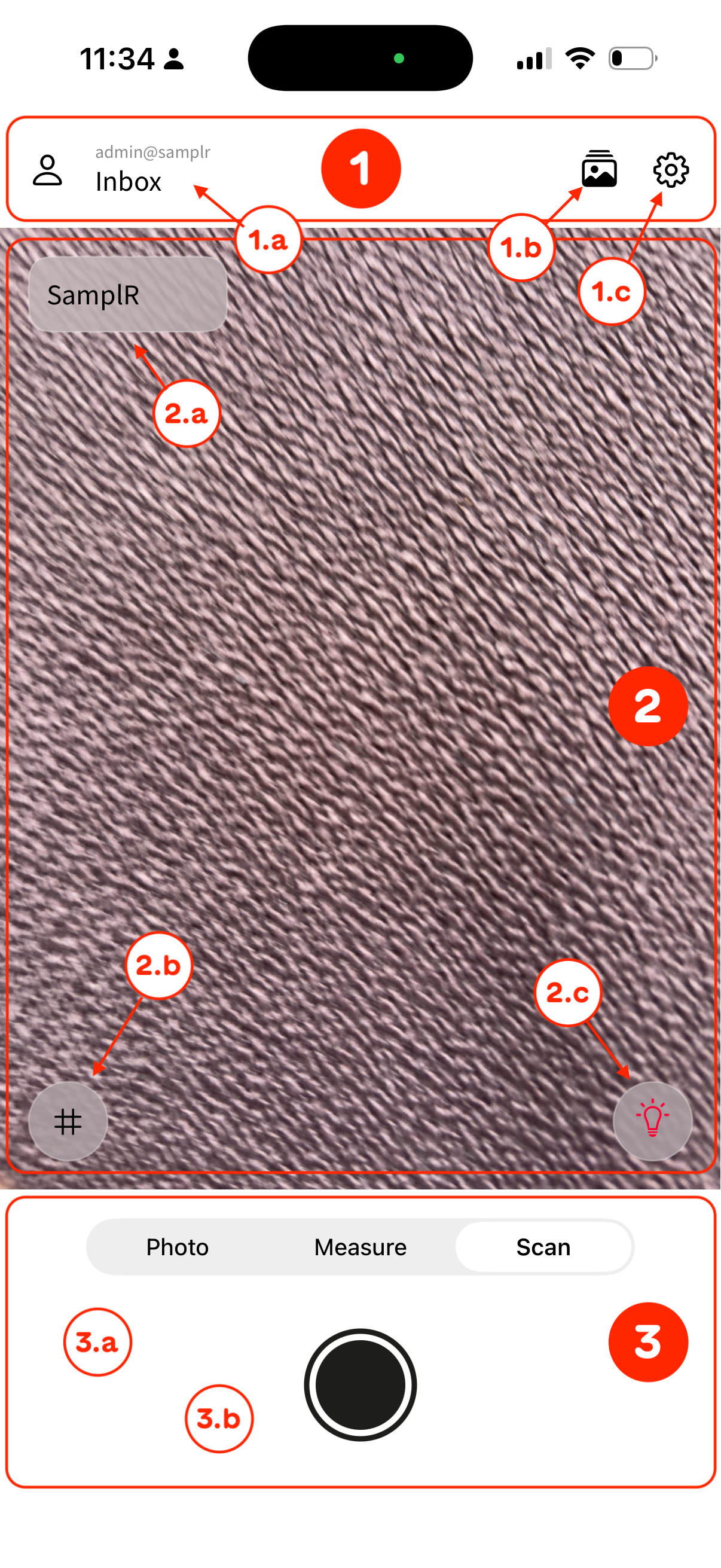

Capture Screen

The Capture Screen is main screen from where you will capture PBR materials, colors or photos.

:1_one_circle_red: Navigation Bar

The Navigation Bar helps you navigate through the app. It gives you access to the library, settings and your DMIx account.

1.a DMIx Account

1.b Library

1.c Settings

:2_two_circle_red: Camera Interface

The Capture Interface gives you direct controls to the outcome of your captures, like a camera preview, alignement guides, focus and different light templates.

2.a Capture Name

2.b Guidelines

2.c Light Control

:3_three_circle_red: Capture Section

Pick your Capture Mode and start scanning.

3.a Capture Modes

3.b Capture Button

1.a. DMIx Account

This section shows, with which DMIx Account you are logged in right now and where DMIx SamplR Captures are uploaded to. Press the “User” Symbol to switch to a different account.

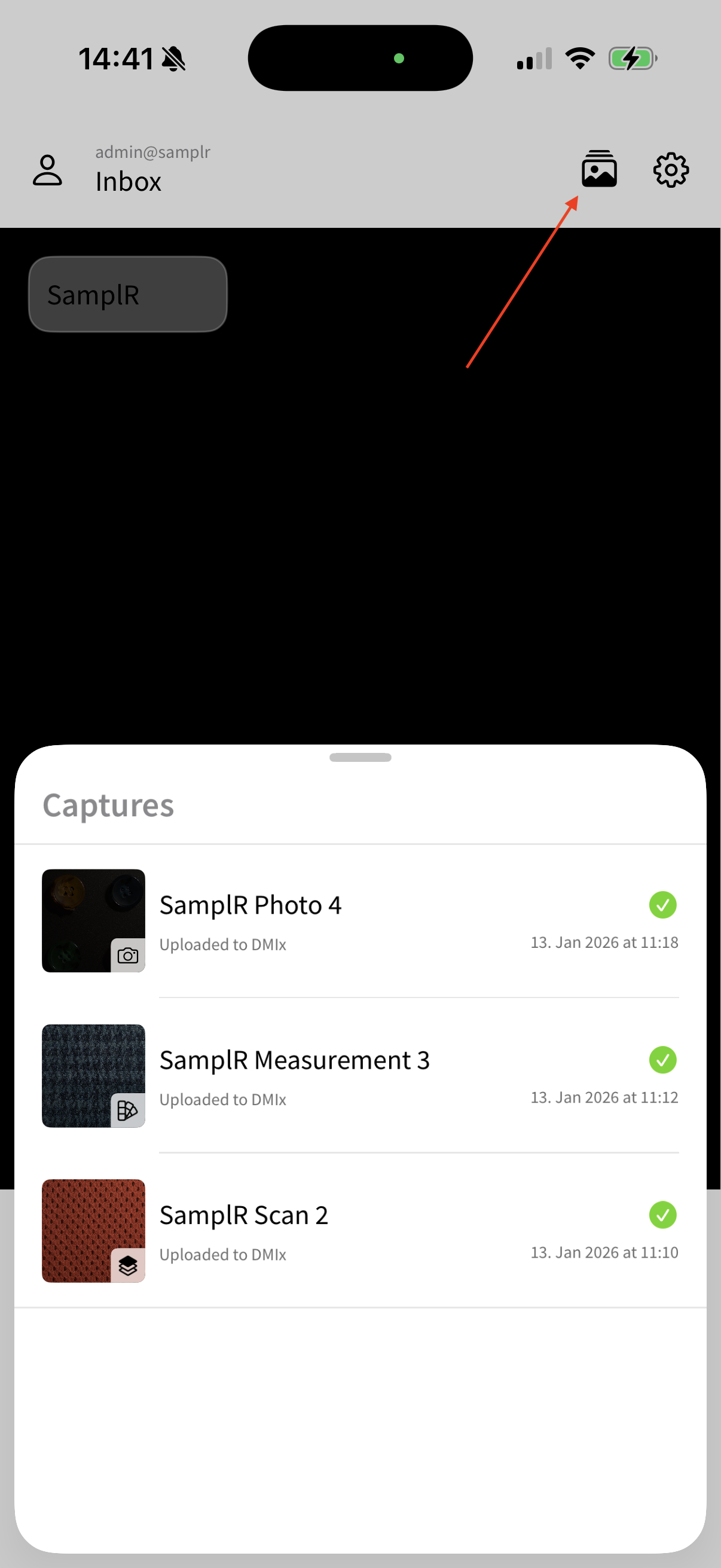

1.b. Library

• Press the “Library” button to open your recent captures. The default setting deletes each capture after uploading to DMIx to save storage. Change this behavior in settings.

• The library menu also shows the current status of your captures: Processing, Uploaded, or if an error occurred.

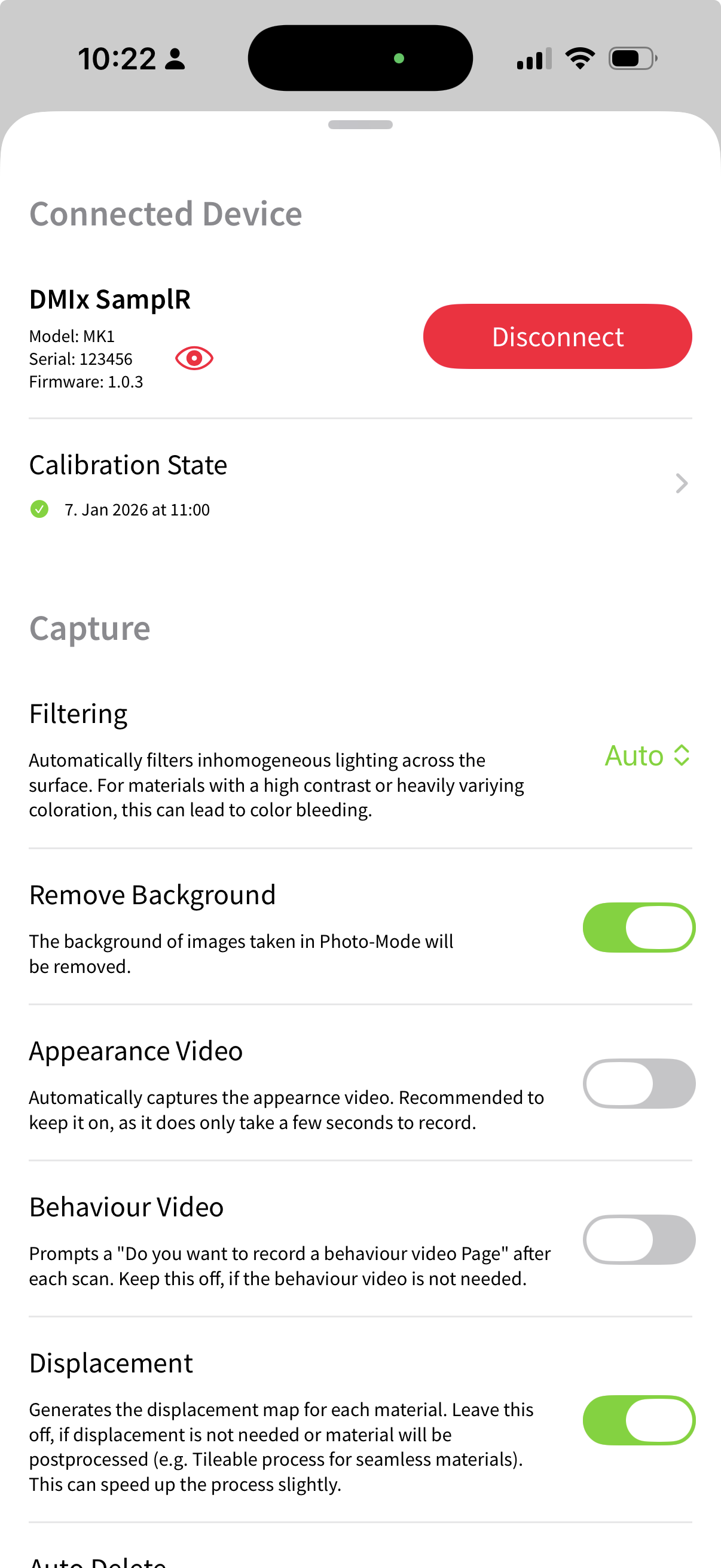

1.c. Settings

Opens the settings menu. Here you find the SamplR connection, settings that affect your captures, and additional information and help sections. It is divided into several sections:

Connected Device

Connect to your device and start calibration from here.

Capture

All settings regarding your captures.

App

General settings like Clean Up and SSO Login settings.

Help & Feedback

Quicklinks to the Help Section, Customer Service and Compliance Information

2.a Capture Name

By pressing into the Textfield the keyboard will open up and you can name your next capture.

2.b Guidlines

Pressing this button will show an guideline overlay in the camera preview to help with aligning your sample.

2.c Light Control

Pressing the lightbulb button will toggle the lights of DMIx SamplR with the current selected light template.

You can select the light template by long pressing the light bulb button.

3.a Capture Modes

Select your preferred capture Mode.

3.b Capture Button

Starts the capture process with the current selected capture mode.
