EIZO Screen Calibration

To upload your EIZO screen profile to your user profile in the DMIx Company Account, you first need to create the profile. Follow these instructions to get started.

Step 1: Download the Software

• Download the Color Navigator 7 application from EIZO.
• Visit this link: Color Navigator 7
• Scroll to the bottom of the page and click "Download Color Navigator 7."
• Once installed, open the app.

Step 2: Set Up the Calibration

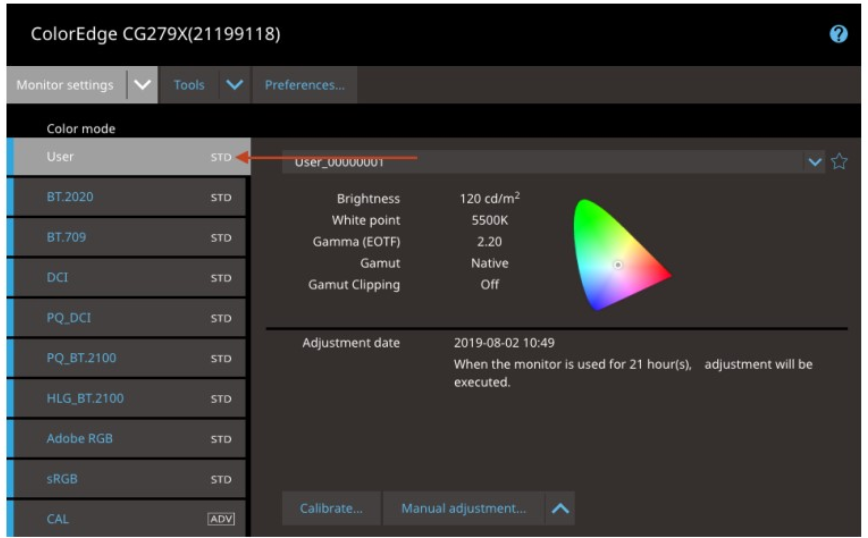

• The interface should show "User" as the default under the Color Mode options.

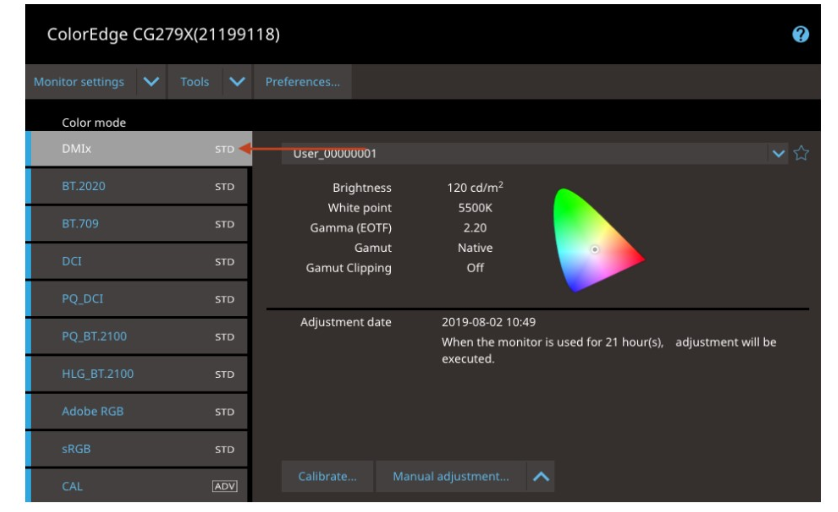

• You can right-click to rename it if needed (e.g., to "DMIx"), though this is optional.

• Right-click again to access "Edit Target" to adjust the screen presets

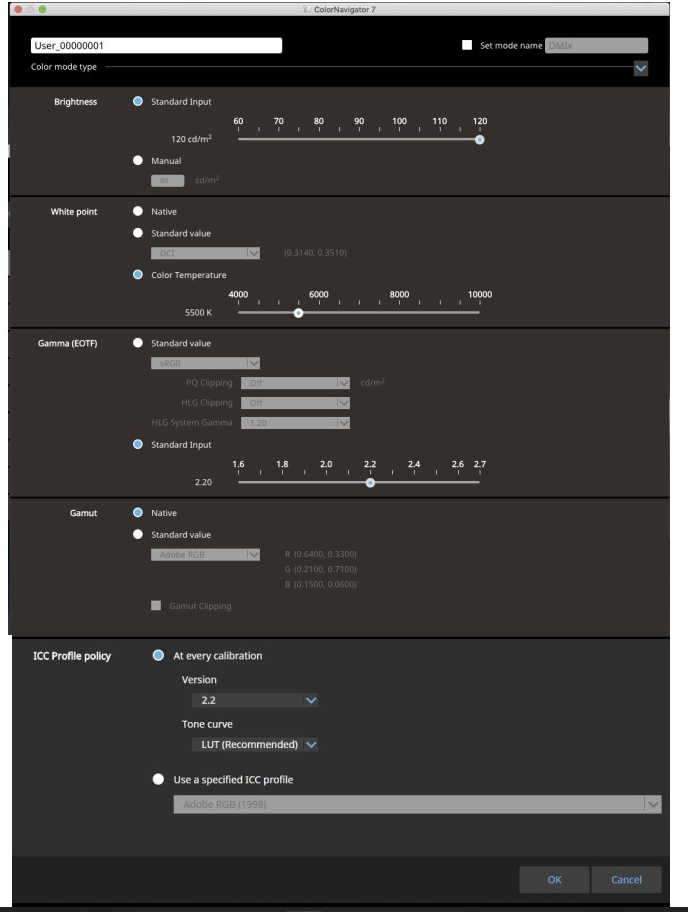

Step 3: Adjust the Settings

• Brightness: Set to 120 cd/m². If your room is very bright, increase it to 140 or 160 cd/m².
• White Point: Set the color temperature to 5500K. If your room has perfect lighting, you can lower it to 5000K.
• Gamma (EOTF): Set to 2.20.
• Gamut: Set to Native.
• ICC Profile Policy: Set to "At every calibration 2.2, Tone curve LUT."
• Apply changes by clicking OK.
  In the main menu click on Calibrate ...

Step 4: Calibrate the Screen

• In the main menu, click "Calibrate."

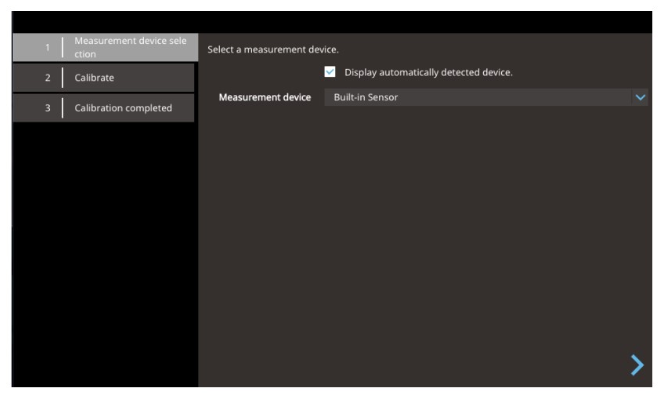

• Ensure "Display automatically detected" and "Measurement device: Built-in Sensor" are checked.
• Click the blue arrow to continue, then "Proceed" to start calibration. The built-in sensor will run automatically, taking about 1-2 minutes.
• Once finished, click "Finish."

Step 5: Save the Profile

• Your profile is saved under the default path.

Step 6: Add the Profile to DMIx

• Start the app on the monitor you just calibrated.
• Log in to your Cloud account.
• Go to My Account > Settings and upload the ICC profile. It will be stored automatically.
